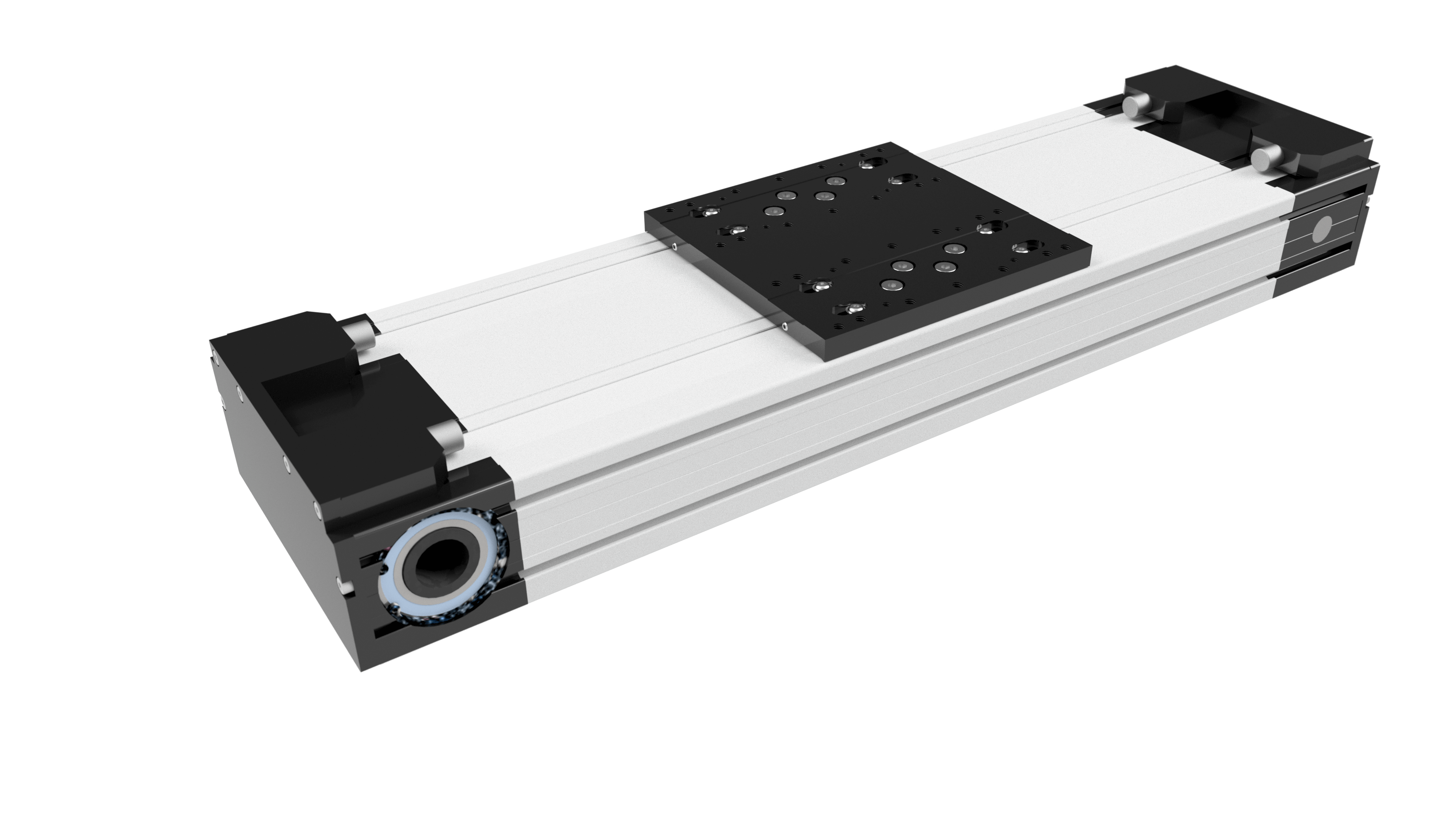

A Linear unit with toothed belt drive and double rail guide system.
Characteristics
- Extrusion profile 80 x 200 mm
- Rail Guide system size -20- with 4 LM blocks
- Very heavy load capacity
- Double Toothed blue belt type AT10, FDA Approved, 32 mm wide
TECHNICAL DATA
| Maximum stroke length | mm | 5.500 |
| Maximum speed | mm/s | 3.000 |
| Maximum acceleration | m/s² | 30 |
| Max. driving torque | Nm | 110 |
| Repeatability | mm | ± 0,1 |
| vement per revolution | mm | 200 |
