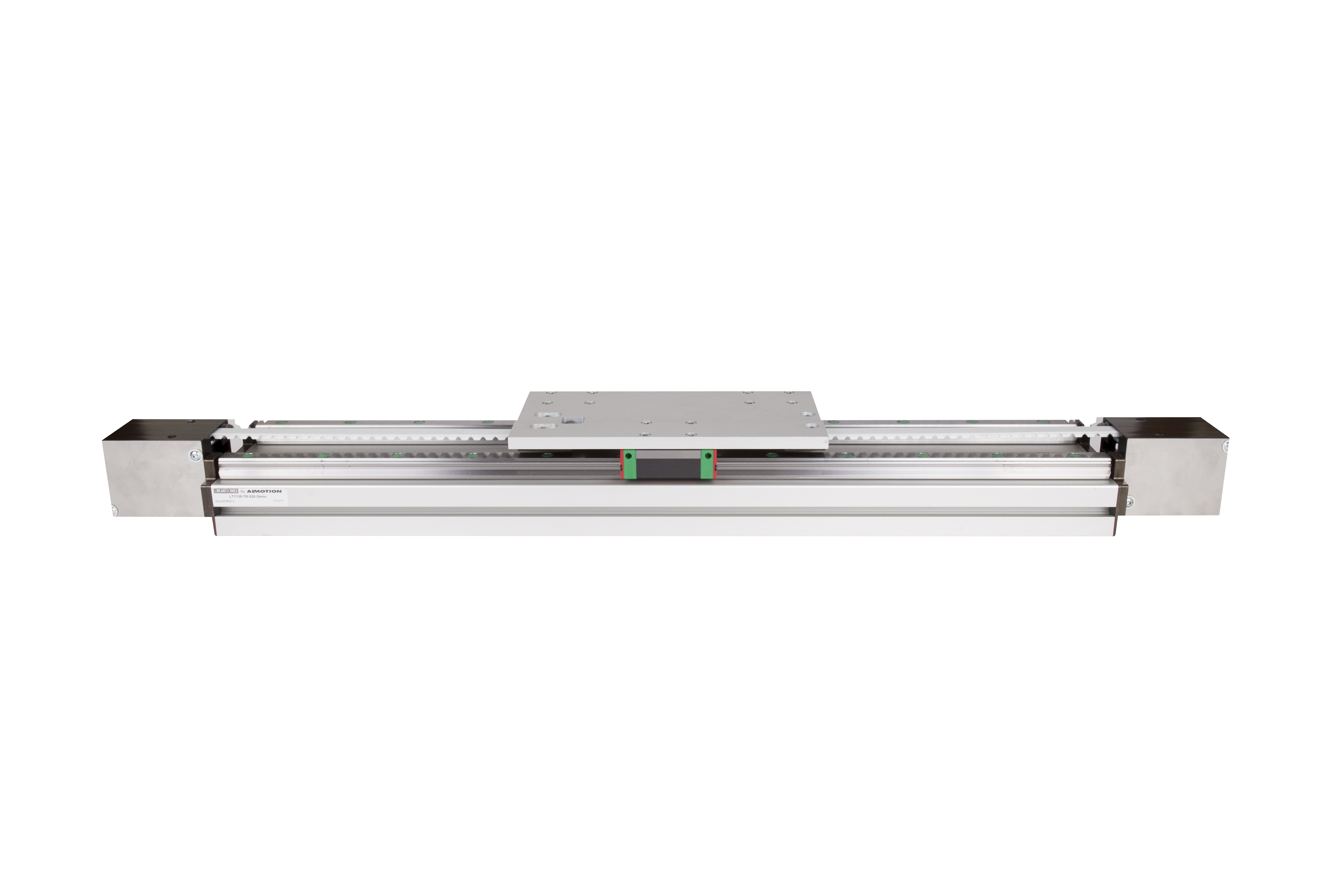

Technical data of Linear Units LTY from Lineairtechniek
| LTY series | ||||
| Maximum stroke | mm | 12.000 | ||
| Maximum speed | mm/s | 5.000 | ||
| Maximum acceleration | m/s2 | 50 | ||
| Repeatability | mm | ± 0,1 | ||
| Movement per revolution | mm | 200 | ||
| Weights Linear Units | LTY135 | LTY180 | ||
| Unit weight 0 mm stroke | Kg | 6,45 | 7,26 | |
| Weight per 100 mm stroke | Kg | 1,05 | 1,23 | |
| Mass of Carriage | Kg | 0,90 | 1,20 | |
| Load capacity | LTY135 | LTY180 | ||
| Mx | Nm | 1.600 | 1.600 | |
| My | Nm | 1.780 | 1.900 | |
| Mz | Nm | 1.250 | 1.250 | |
| Fx | N | 2.100 | 2.100 | |
| Fy | N | 14.800 | 14.800 | |
| Fz | N | 14.800 | 14.800 | |
*D Double carriage
