Technical data of Lineair Unit LTi45 from Lineairtechniek

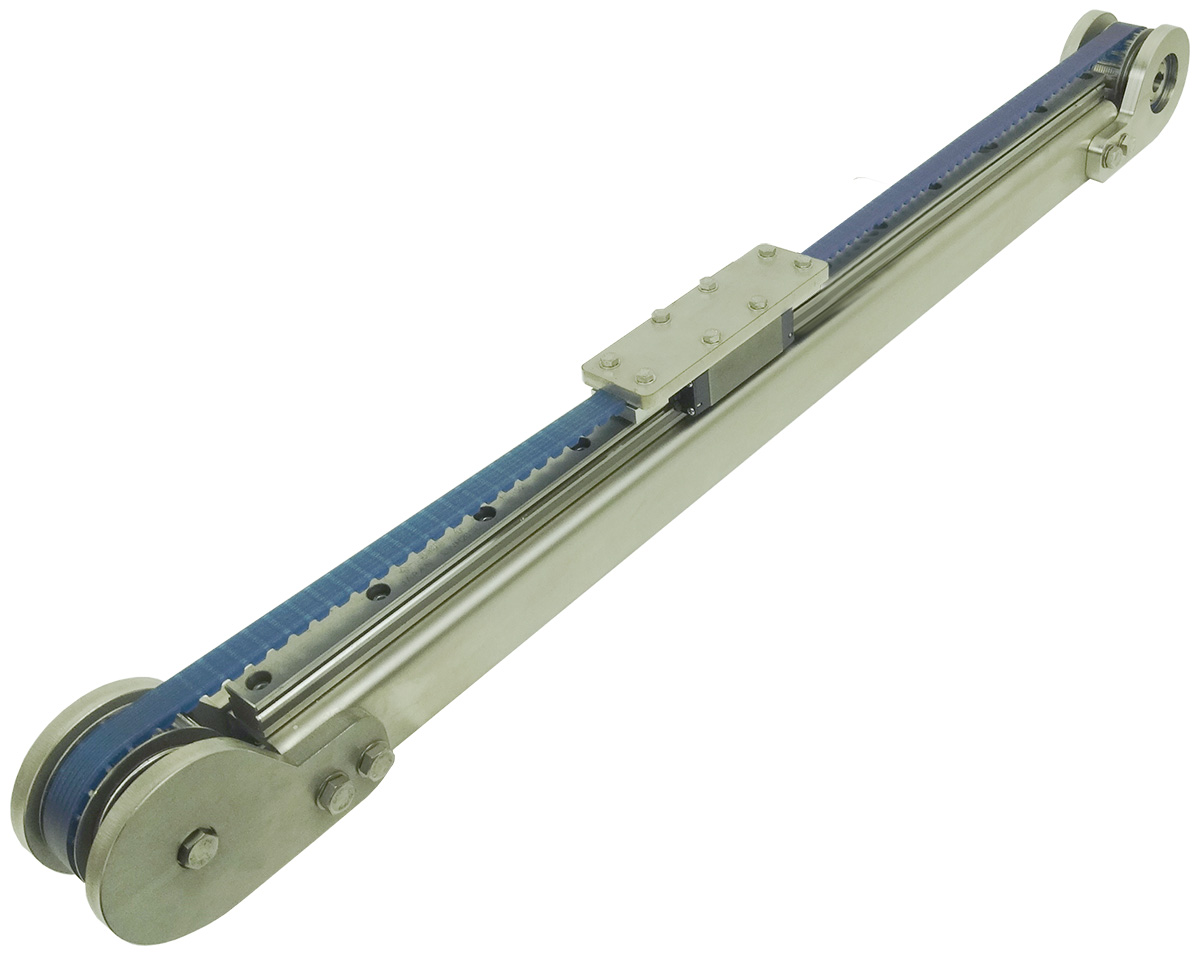

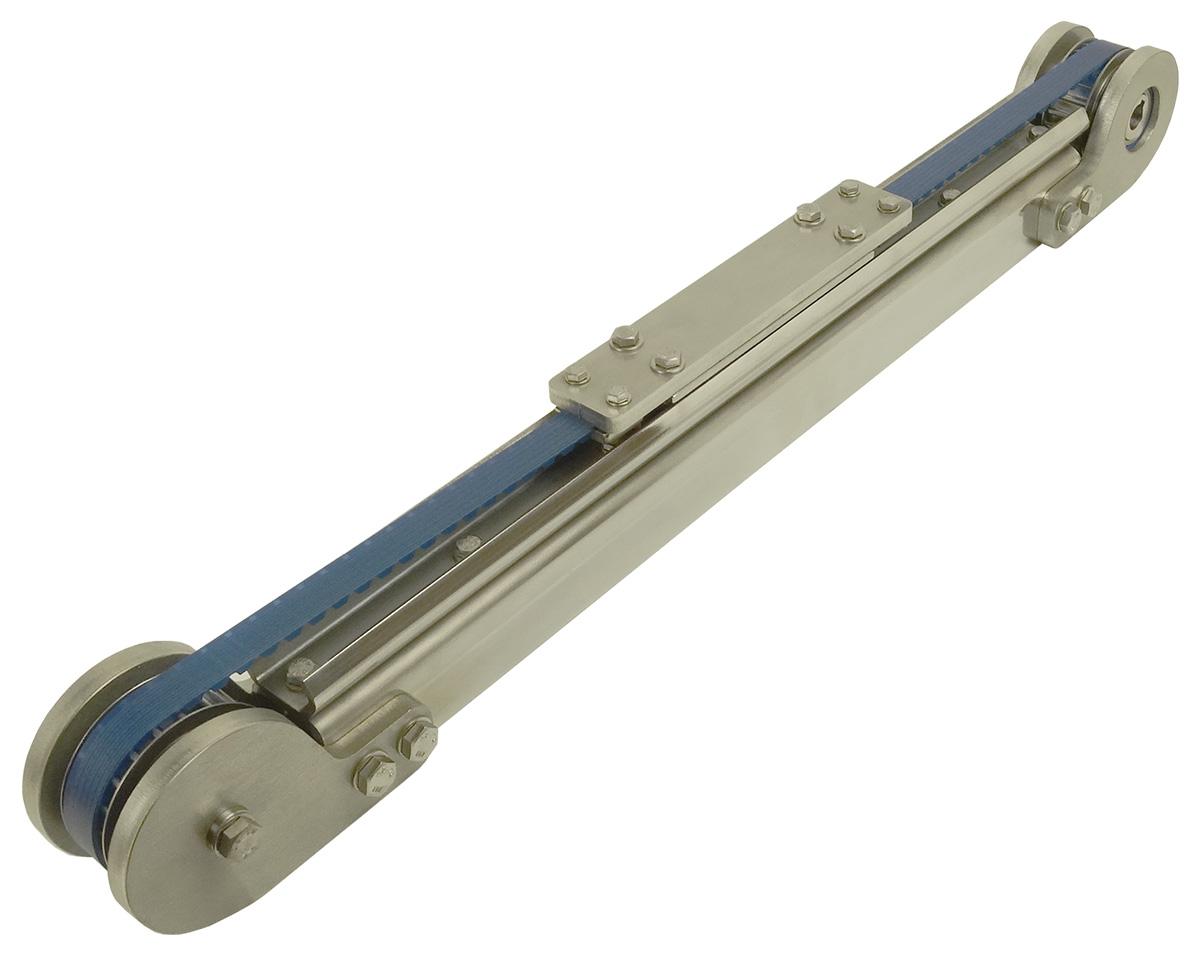

| LTi45-TRB-C45 | LTi45-TRB-S20i | LTi45-TRB-S20iD | ||
| Maximum stroke | mm | 5.500 | 3.000 | 3.000 |
| Maximum speed | mm/s | 1.500 | 1.500 | 1.500 |
| Maximum acceleration | m/s2 | 30 | 30 | 30 |
| No load torck | Nm | 0,2 | 0,6 | 0,6 |
| Repeatability | mm | ±0,1 | ±0,1 | ±0,1 |
| Movement per revolution | mm | 200 | 200 | 200 |
| Weight Linear Units | ||||
| Unit weight 0 mm stroke | Kg | 5,00 | 5,10 | 5,60 |
| Weight per 100 mm stroke | Kg | 0,40 | 0,45 | 0,45 |
| Mass of carriage | Kg | 0,70 | 0,90 | 1,10 |
| Load capacity | ||||
| Mx | Nm | 80 | 140 | 680 |
| My | Nm | 120 | 280 | 560 |
| Mz | Nm | 8 | 140 | 680 |
| Fx | N | 2.100 | 2.100 | 2.100 |
| Fy | N | 1.600 | 3.600 | 8.000 |
| Fz | N | 860 | 3.600 | 8.000 |
*D Double carriage
