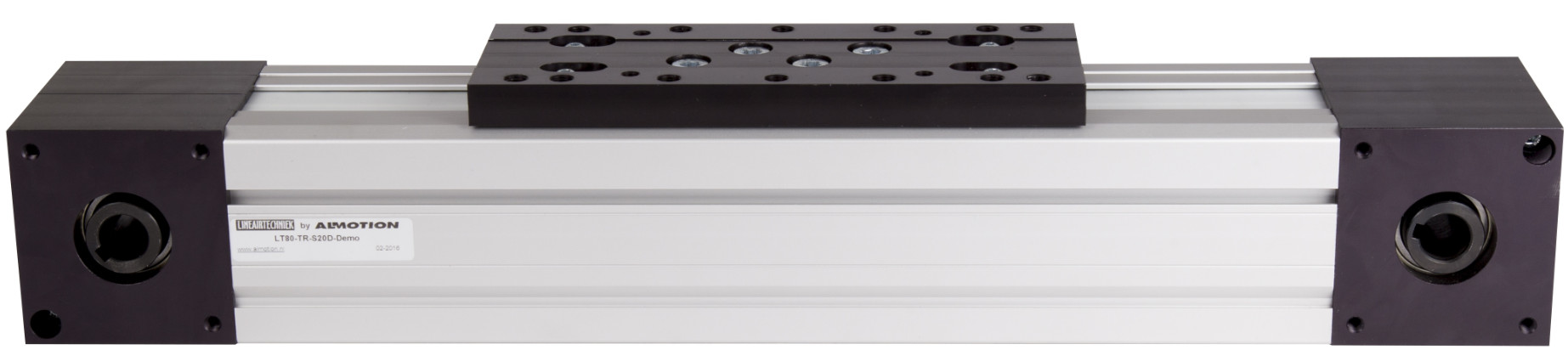

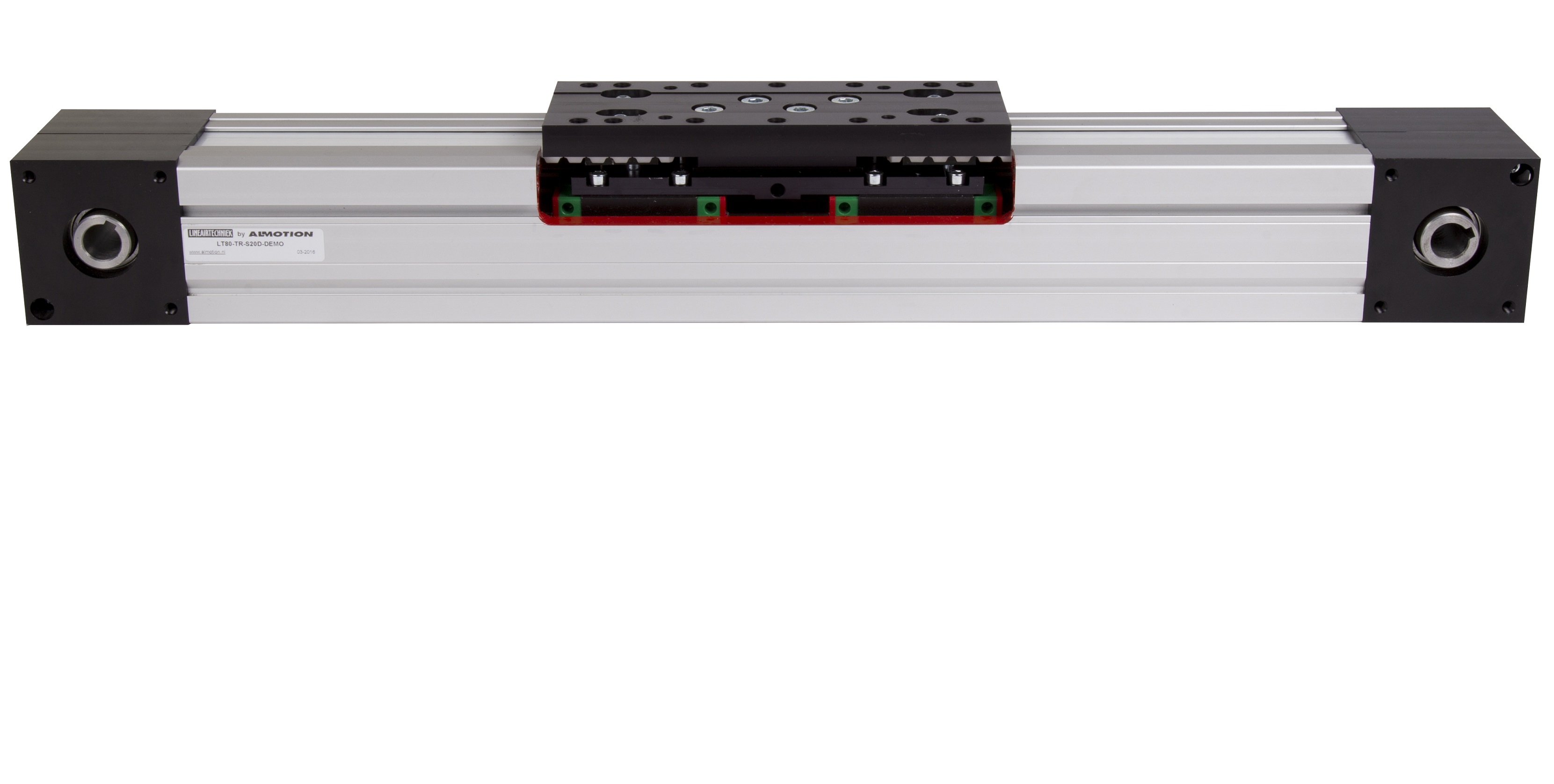

Technical data of Linear Unit LT80 from Lineairtechniek
| LT80-TR-G10 | LT80-TR-S15D* | |||
| Maximum stroke length | mm | 5.750 | 5.750 | |
| Maximum speed | mm/s | 5.000 | 3.000 | |
| Maximum acceleration | m/s2 | 50 | 30 | |
| No load torck | Nm | 0,8 | 1,1 | |
| Repeatability | mm | ±0,1 | ±0,1 | |
| Movement per revolution | mm | 200 | 200 | |
| Weights Linear Units | ||||
| Unit weight 0 mm stroke | Kg | 7,96 | ||
| Weight pe 100 mm stroke | Kg | 0,72 | ||
| Mass of carriage | Kg | 2,25 | ||
| Load capacity | ||||
| Mx | Nm | 86 | 720 | |
| My | Nm | 126 | 960 | |
| Mz | Nm | 50 | 220 | |
| Fx | N | 4.400 | 4.400 | |
| Fy | N | 1.400 | 7.400 | |
| Fz | N | 1.400 | 7.400 |
*D Double carriage
