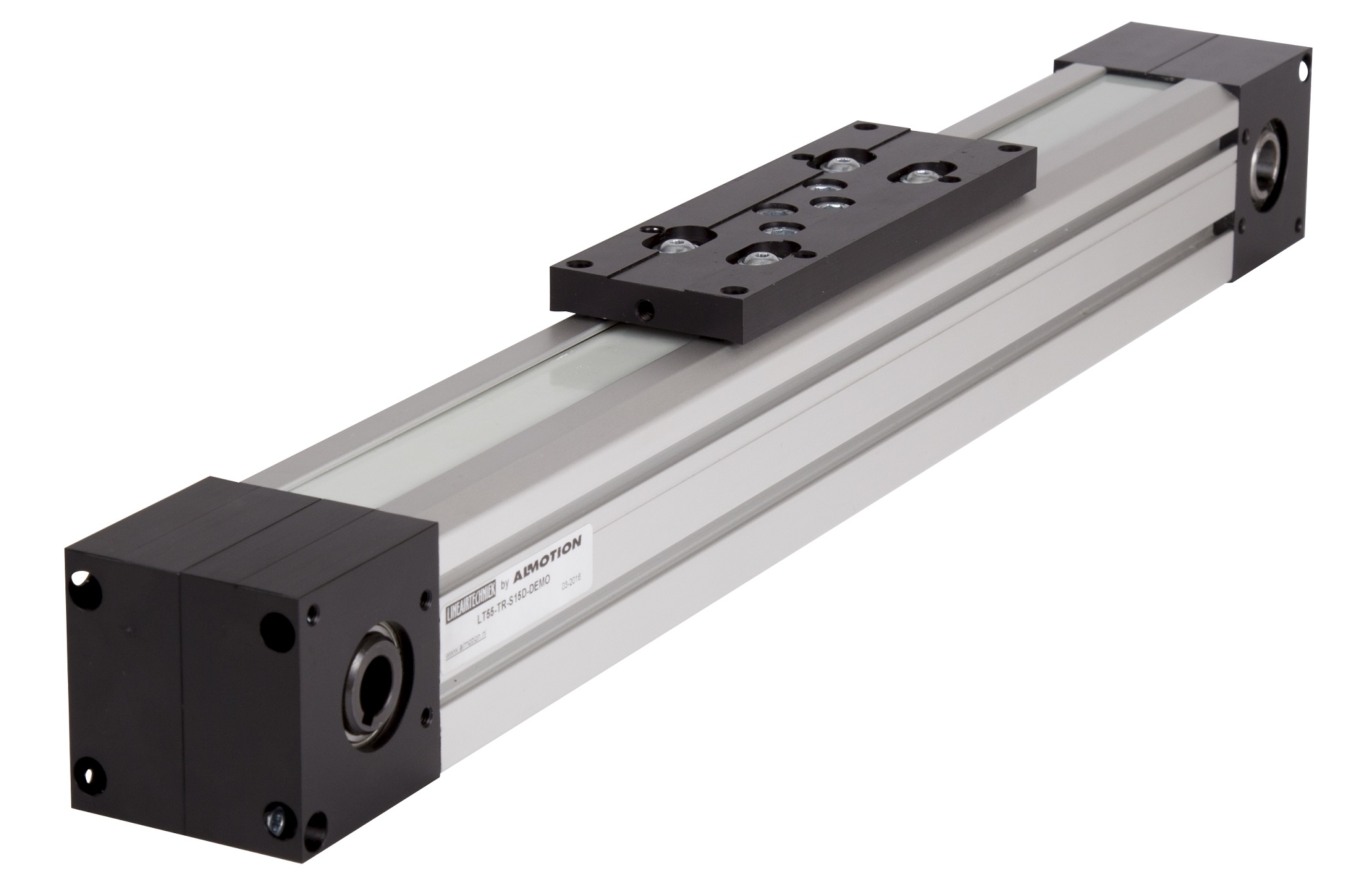

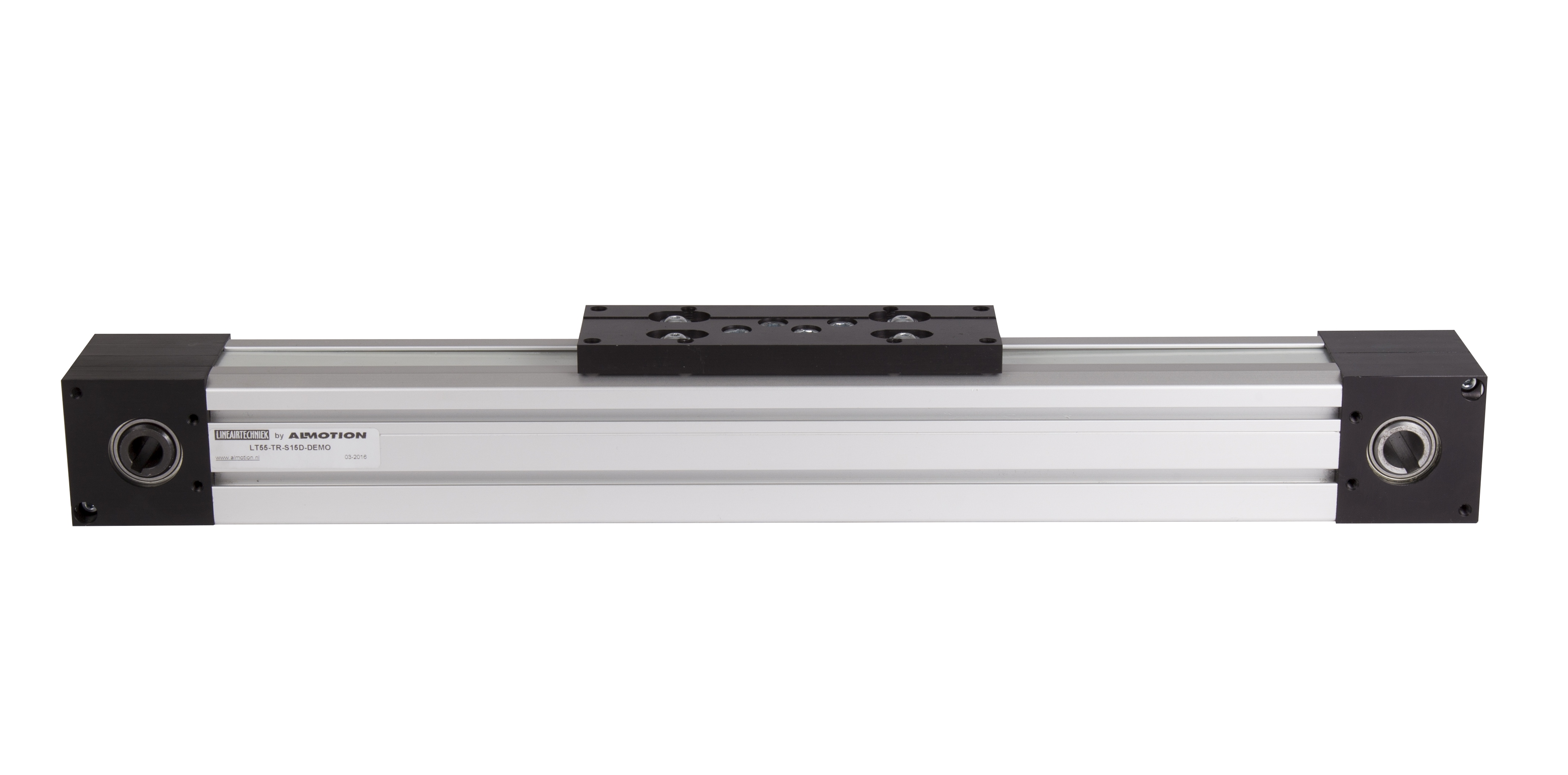

Technical data of Linear Unit LT55 from Lineairtechniek
| LT55-TR-S15D* | ||||
| Maximum stroke length | mm | 5.730 | ||
| Maximum speed | mm/s | 3.000 | ||
| Maximum acceleration | m/s2 | 30 | ||
| No load torck | Nm | 0,9 | ||
| Repeatability | mm | ±0,1 | ||
| Movement per revolution | mm | 150 | ||
| Weights Linear Units | ||||
| Unit weight 0 mm stroke | Kg | 3,69 | ||
| Weight per 100 mm stroke | Kg | 0,40 | ||
| Mass of carriage | Kg | 0,97 | ||
| Load capacity | ||||
| Mx | Nm | 106 | ||
| My | Nm | 106 | ||
| Mz | Nm | 40 | ||
| Fx | N | 1.200 | ||
| Fy | N | 3.400 | ||
| Fz | N | 3.600 |
*D Double carriage
