Technical data of Linear Units LT2 from Lineairtechniek

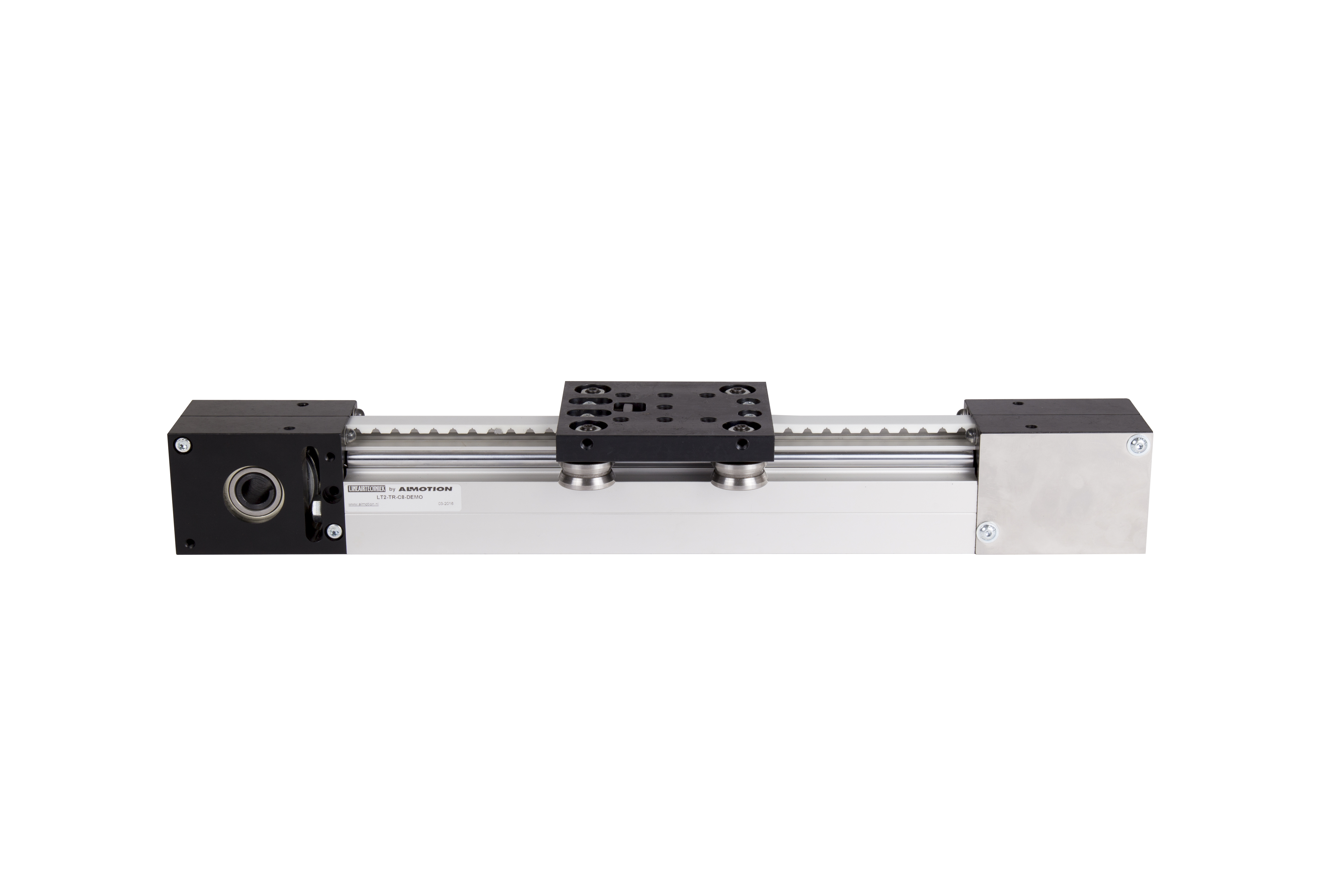

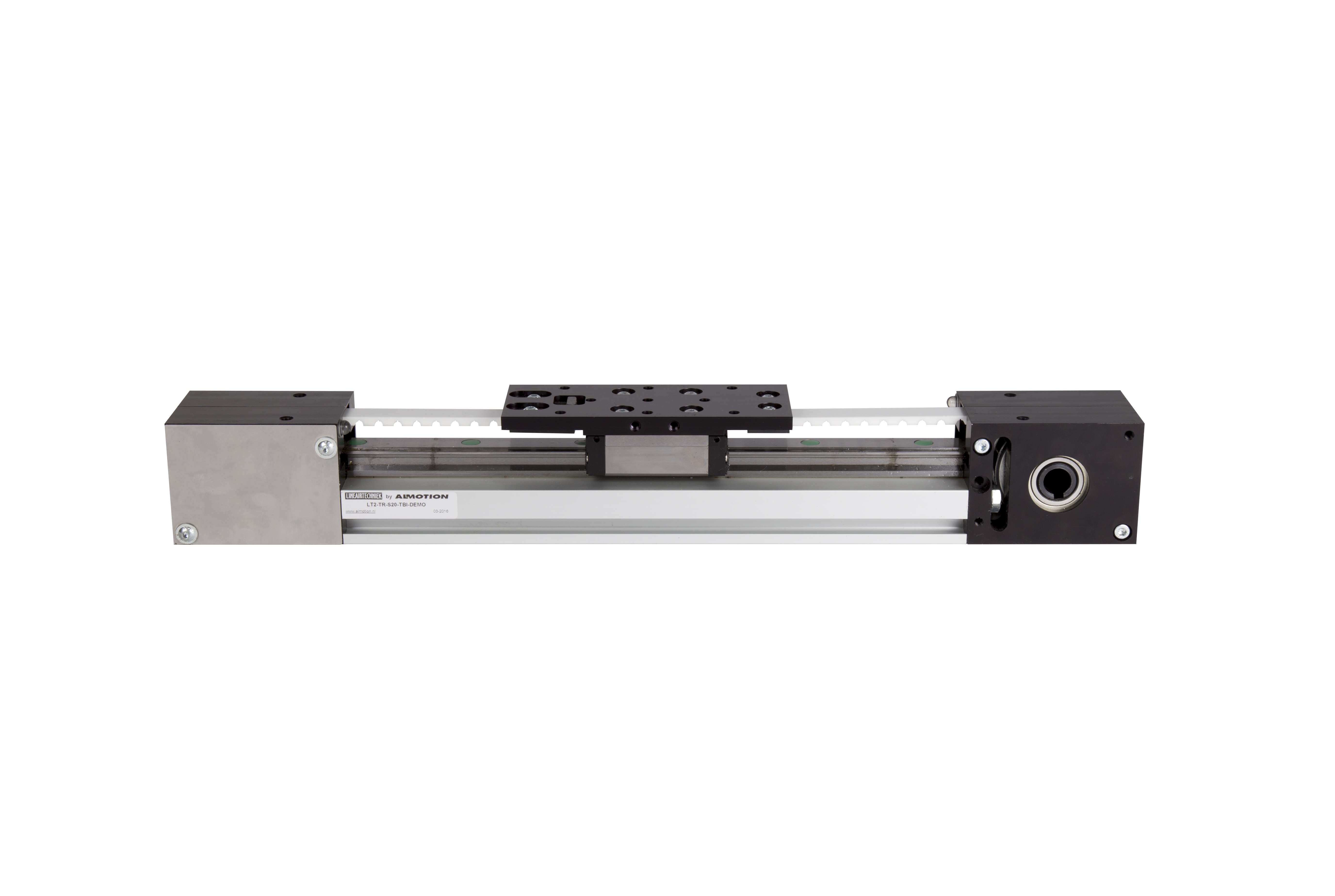

| LT2-TR-C8 | LT2-TR-S20 | LT2-TR-S20D* | ||
| Maximum stroke | mm | 5.500 | 3.000 | 2.900 |
| Maximum speed | mm/s | 5.000 | 3.000 | 3.000 |
| Maximum acceleration | m/s2 | 50 | 30 | 30 |
| No load torck | Nm | 0,2 | 0,6 | 0,9 |
| Repeatability | mm | ±0,1 | ±0,1 | ±0,1 |
| Movement per revolution | mm | 180 | 180 | 180 |
| Weights Linear Units | ||||
| Unit weight 0 mm stroke | Kg | 4,31 | 4,80 | 5,31 |
| Weight per 100 mm stroke | Kg | 0,34 | 0,40 | 0,40 |
| Mass of carriage | Kg | 0,65 | 0,84 | 0,99 |
| Load capacity | ||||
| Mx | Nm | 5 | 165 | 726 |
| My | Nm | 6 | 310 | 620 |
| Mz | Nm | 7 | 165 | 726 |
| Fx | N | 2.100 | 2.100 | 2.100 |
| Fy | N | 1.000 | 4.500 | 9.000 |
| Fz | N | 1.000 | 4.500 | 9.000 |
*D Double carriage
